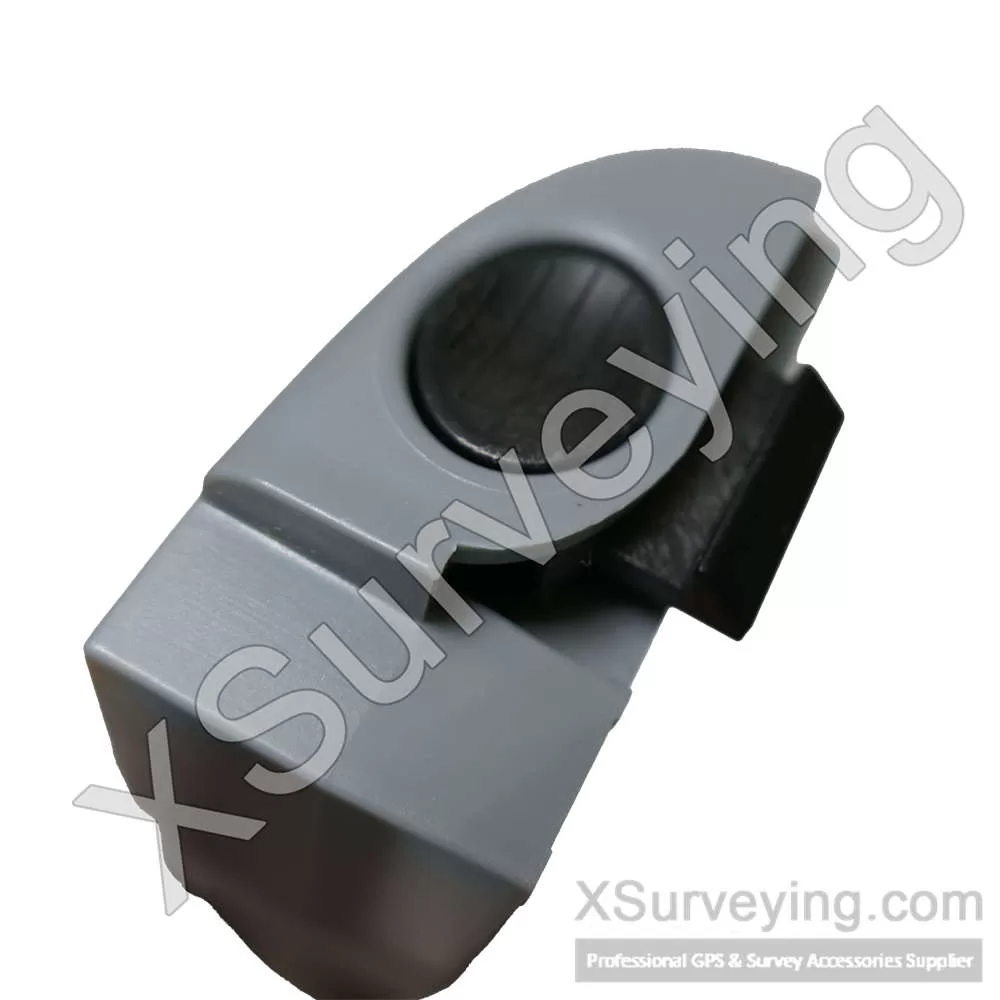

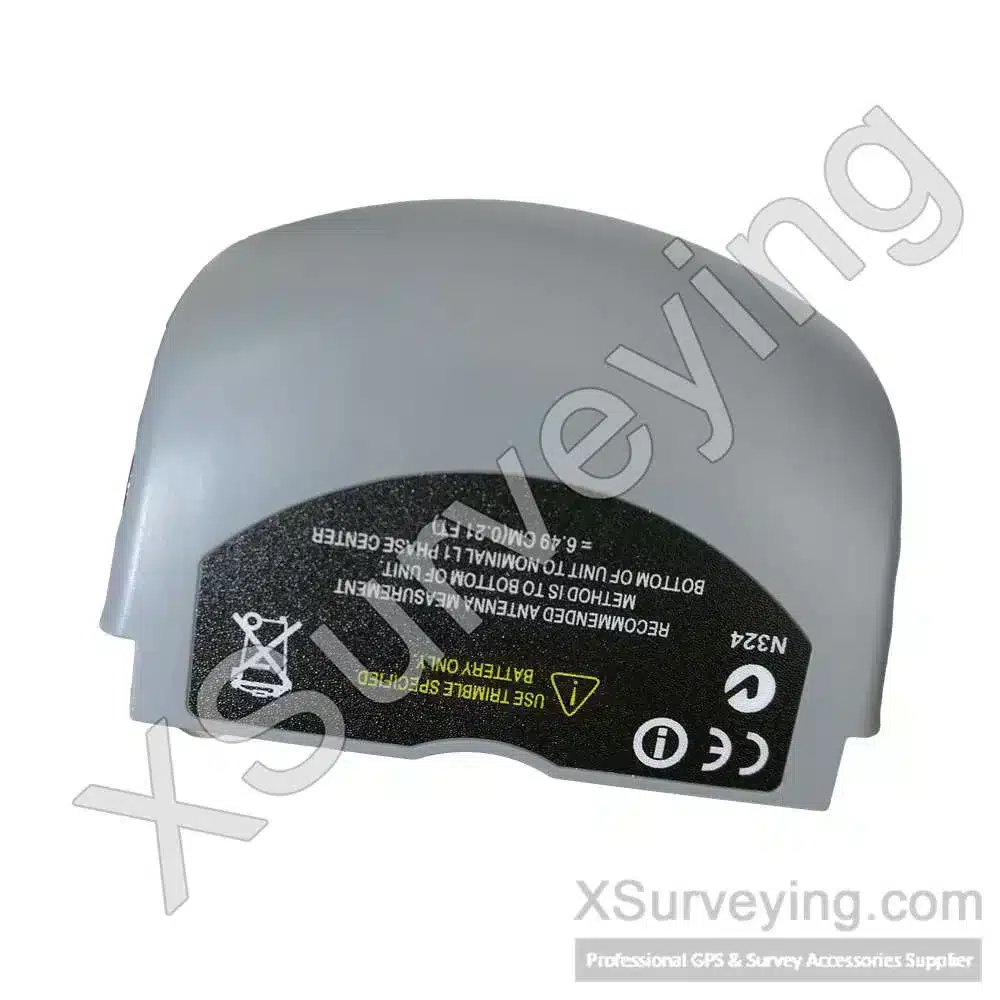

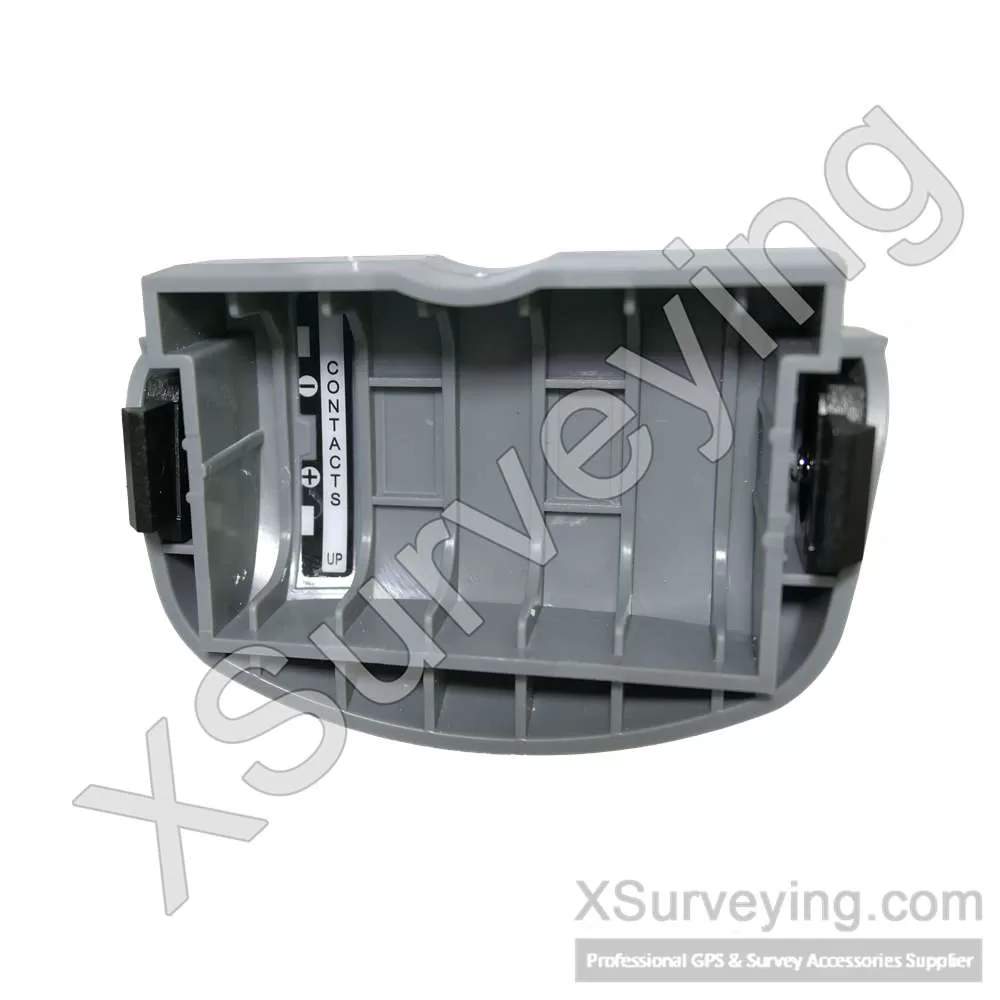

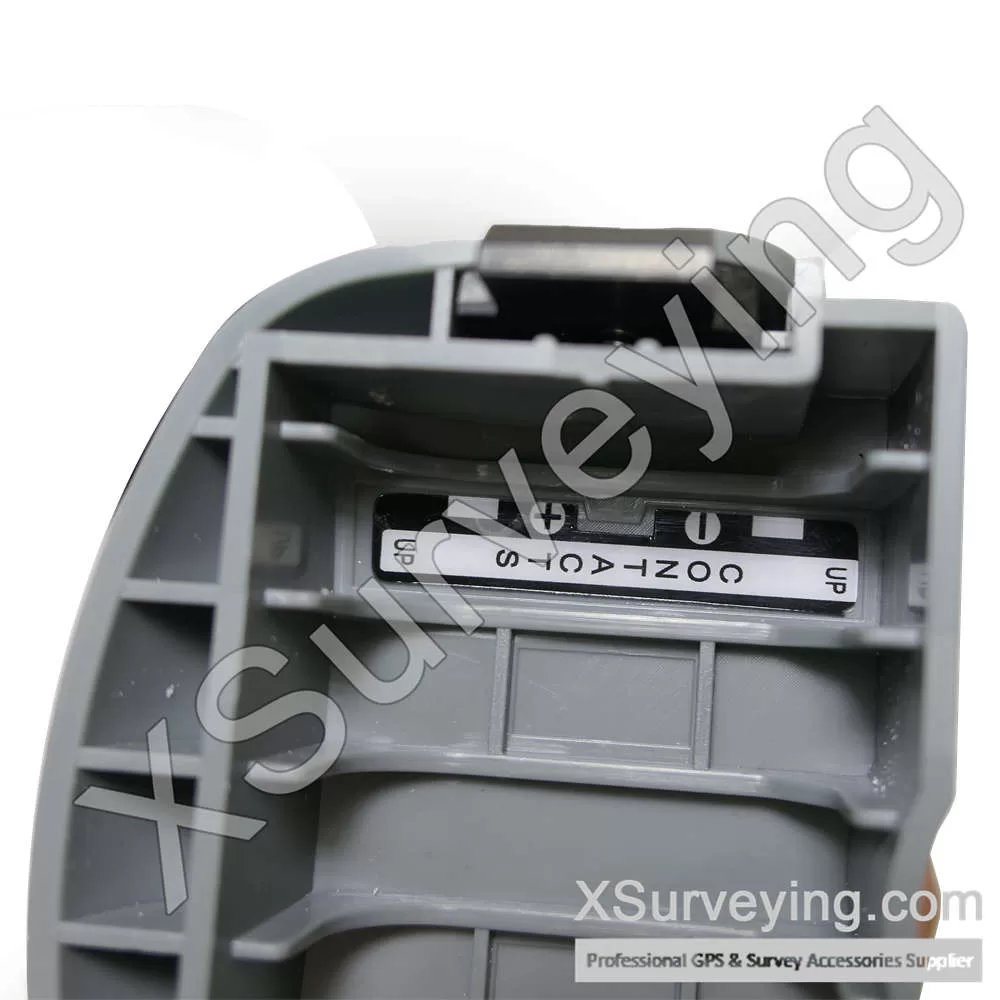

New Trimble R8s Battery Door

Overview

The Trimble R8s battery door is a crucial component that protects the internal battery and ensures the device operates correctly.The Trimble R8s is a high-performance Global Navigation Satellite System (GNSS) receiver widely used in surveying and positioning applications.

Functions of the Battery Door

1. Battery Protection: The battery door effectively prevents dust, moisture, and other external factors from damaging the battery.
2. Safety: It ensures that the battery remains securely in place during use, preventing accidental disconnections or short circuits.
3. Easy Replacement: The design allows users to easily replace the battery door without the need for specialized tools.

Steps to Replace the Battery Door

1. Prepare Tools: Gather an appropriate screwdriver and a new battery door.
2. Power Off the Device: Ensure the device is turned off and all connections are disconnected before replacing the battery door.
3. Remove the Old Battery Door:
   – Use the screwdriver to remove the screws securing the battery door.
   – Carefully detach the old battery door, avoiding damage to other parts of the device.
4. Install the New Battery Door:
   – Align the new battery door with the device’s casing.
   – Secure it in place with the screws using the screwdriver, ensuring a tight fit.
5. Test the Device: Power on the device to confirm that the battery door is installed correctly and that the device operates normally.

Conclusion

The battery door of the Trimble R8s not only protects the internal components of the device but also ensures its long-term stable operation. Regularly checking and replacing the battery door is an essential maintenance step. If you have further questions or need assistance, feel free to contact professionals or Trimble customer service.
