High Quality Leica TS09 Keypad

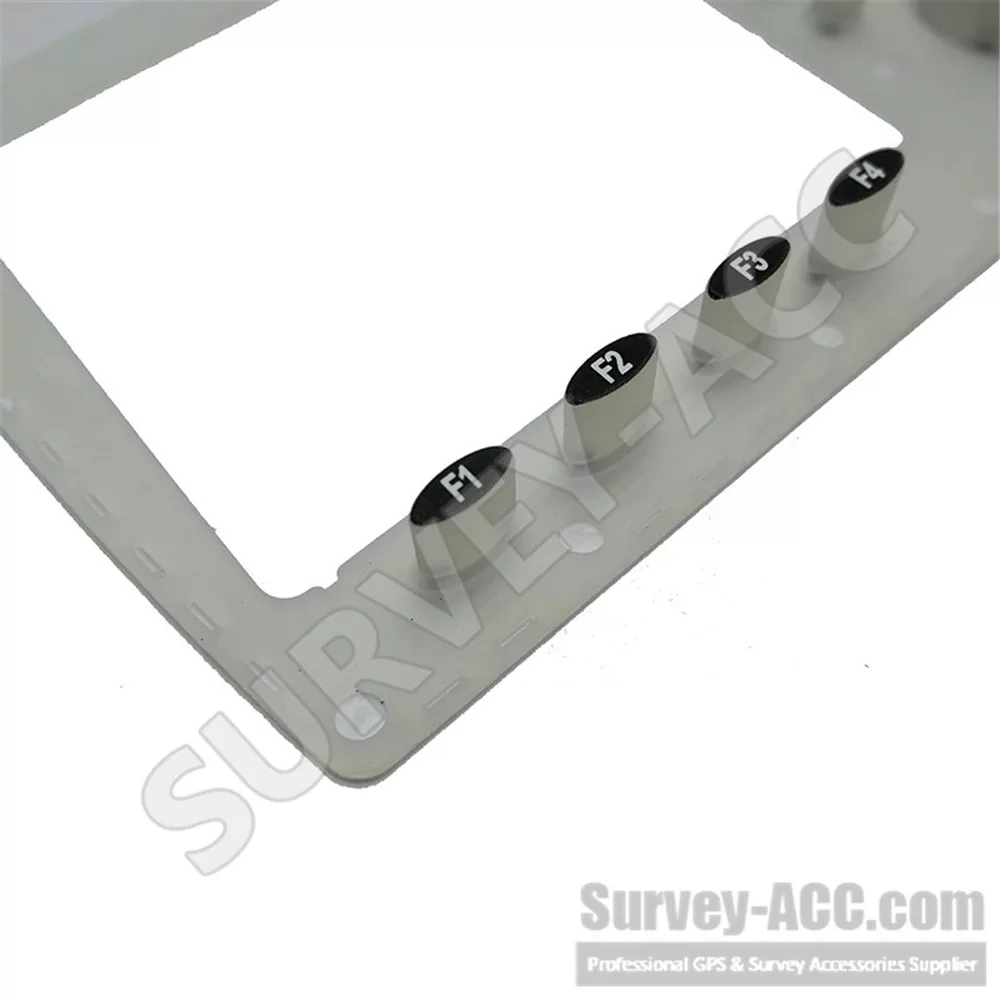

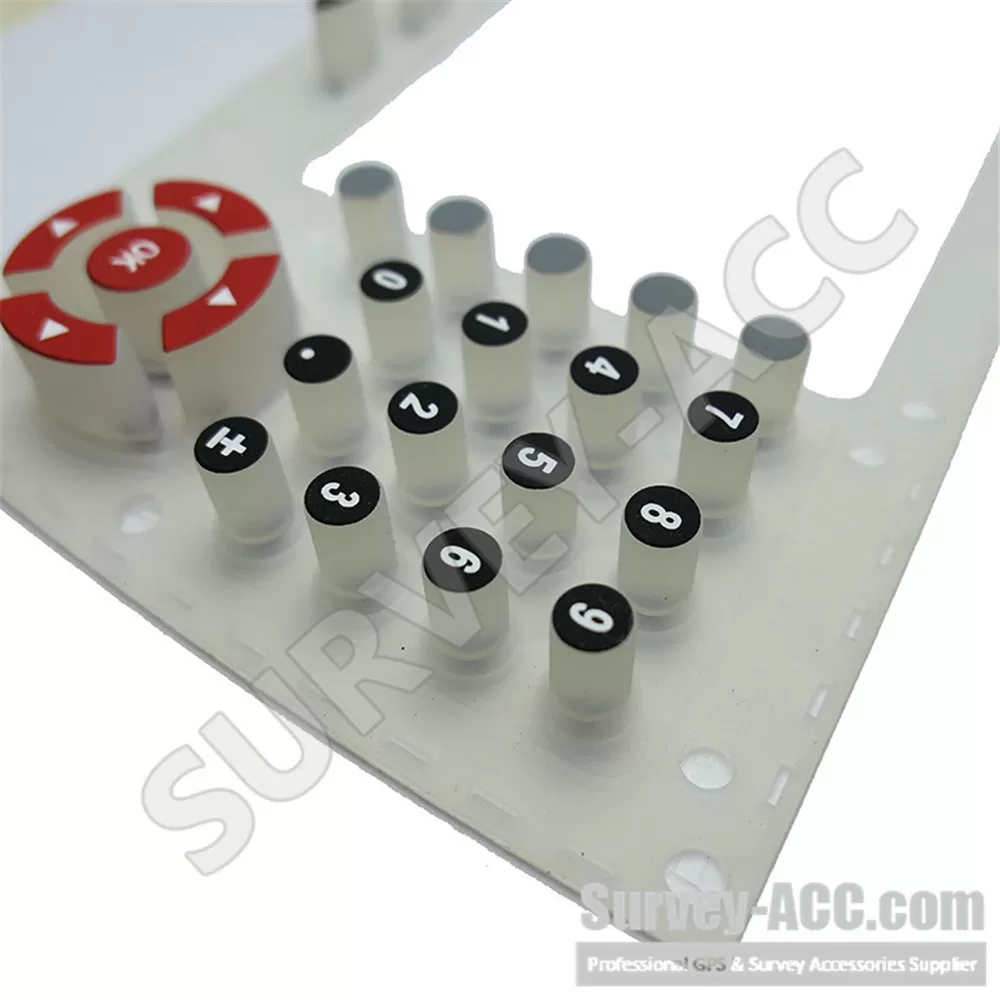

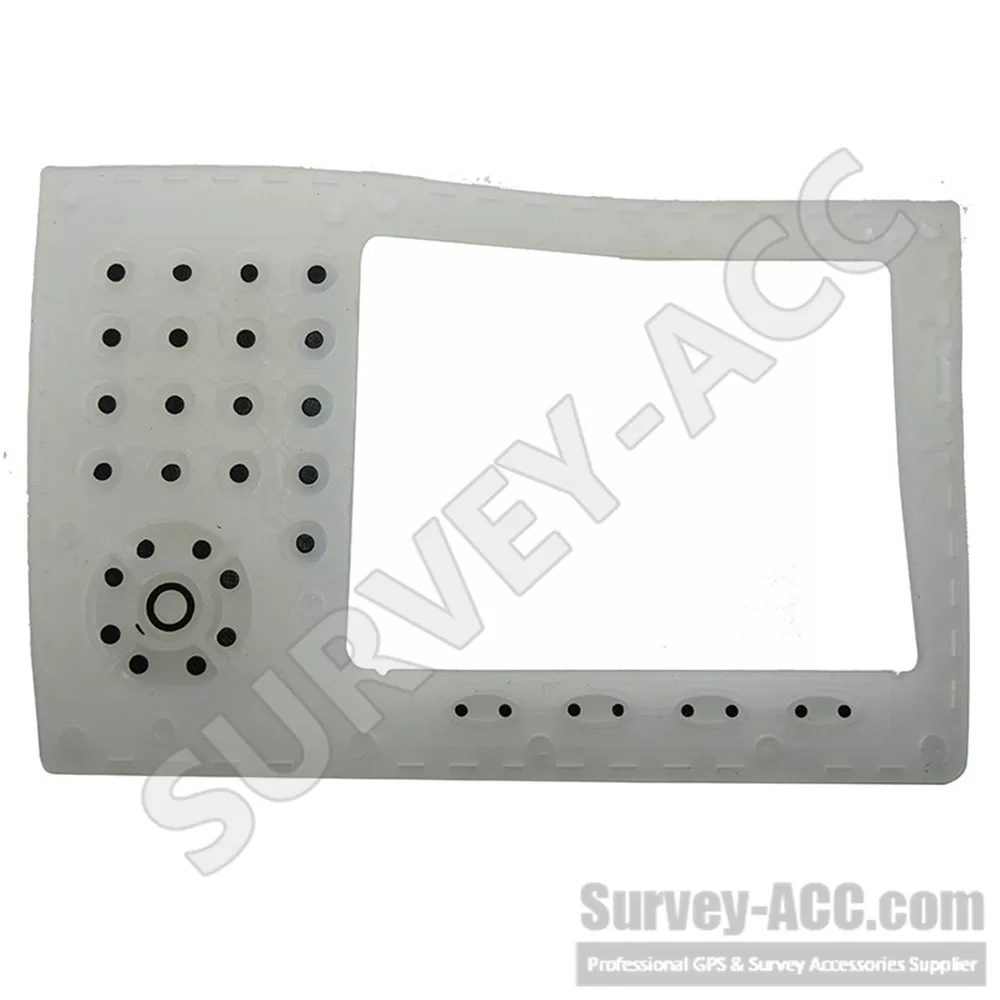

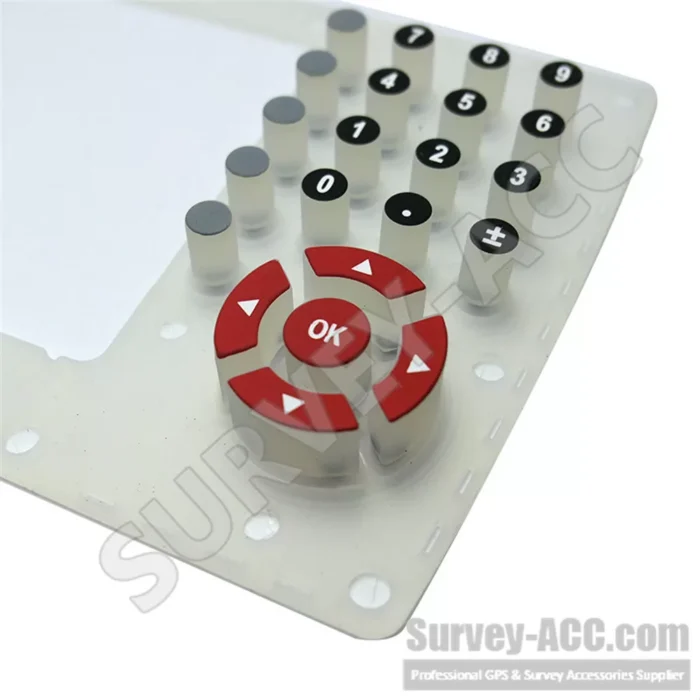

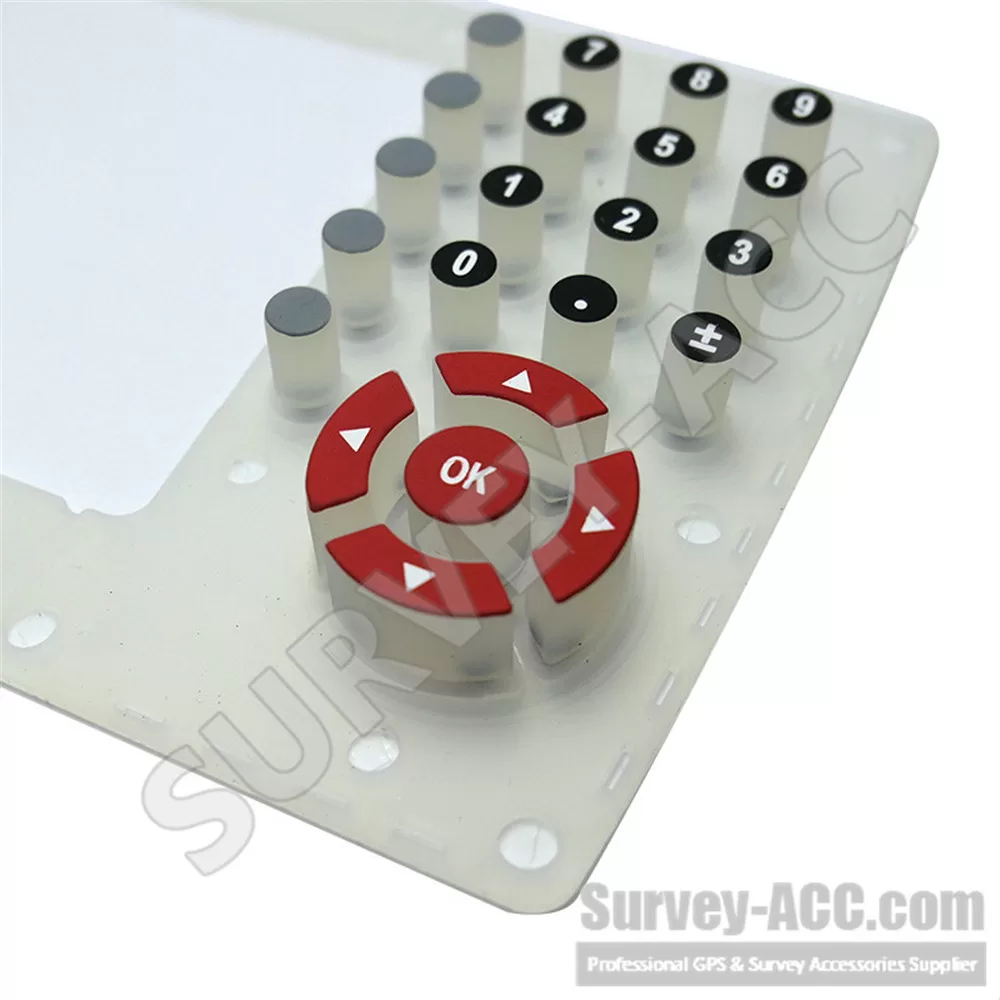

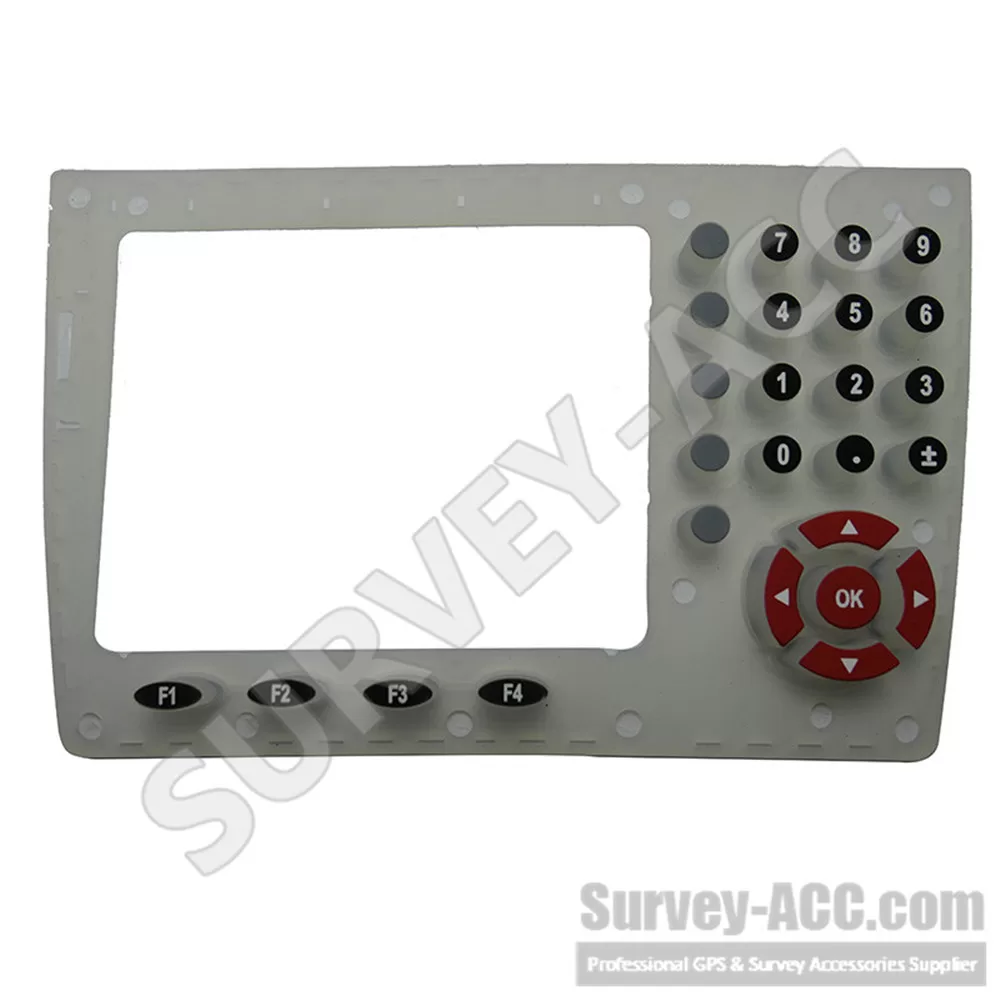

Brand New Silcone Rubber TS09 Keypad for VIVA TS09 Total Station

What is the Leica TS09 Keypad used for?

The Leica TS09 Keypad is used as a control interface for the Leica TS09 total station, allowing users to input commands and access various functions and settings.

How do I connect the Leica TS09 Keypad to the Leica TS09 total station?

To connect the Leica TS09 Keypad to the Leica TS09 total station, you need to follow these steps:

Make sure both the keypad and the total station are powered off.

Connect the coiled cable from the keypad to the data port on the side of the total station.

Power on the total station by pressing and holding the power button until it turns on.

Power on the keypad by pressing and holding the power button until it turns on.

Once both devices are powered on, they should automatically establish a connection.

If the connection is not established automatically, you may need to check the cable connection and ensure that it is properly connected. Additionally, make sure that both devices are compatible with each other.

It’s important to consult the user manual or contact Leica support for specific instructions related to your model, as different versions may have slightly different procedures.
