Trimble R8 Keypad / Front Panel with Membrane Circuit

Product Overview

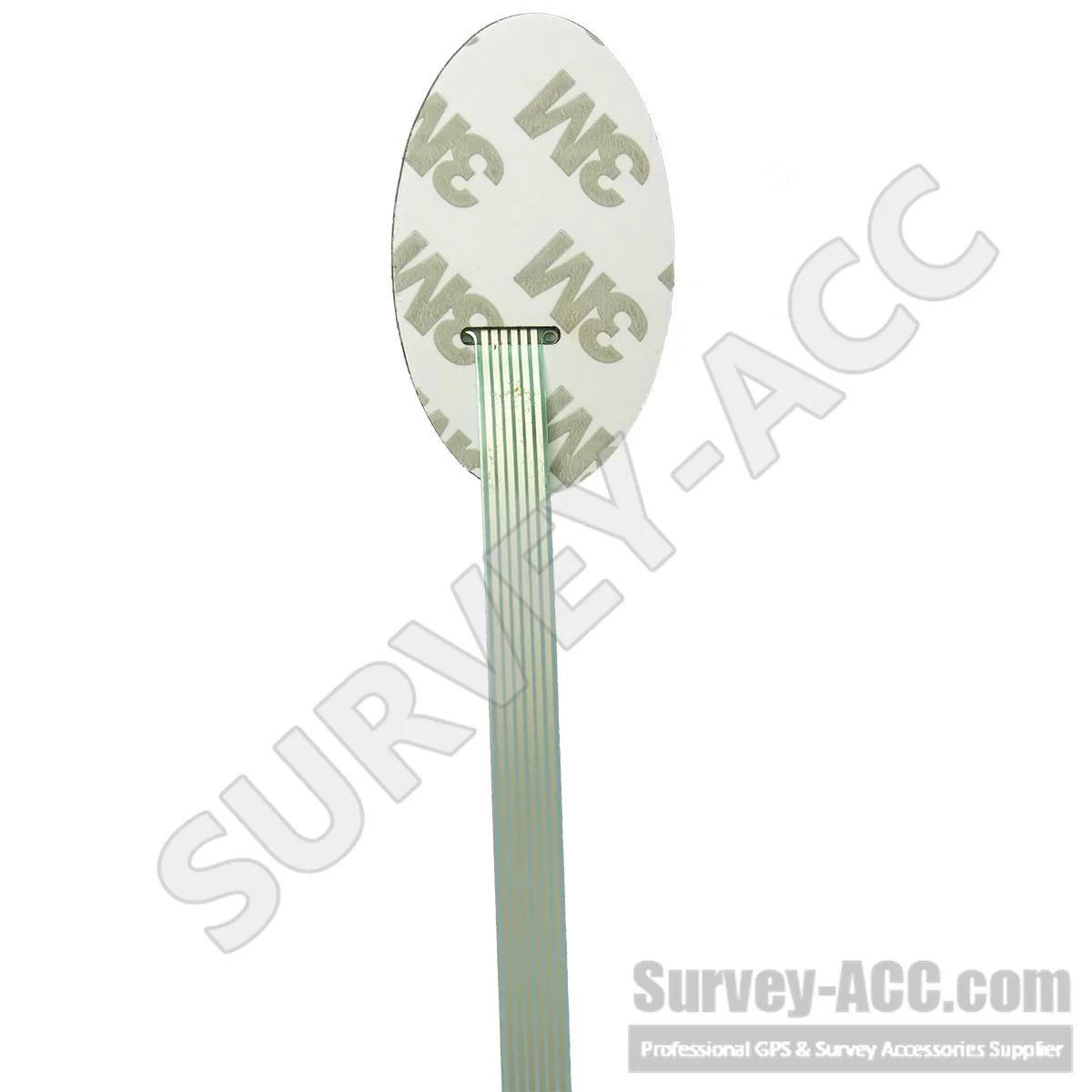

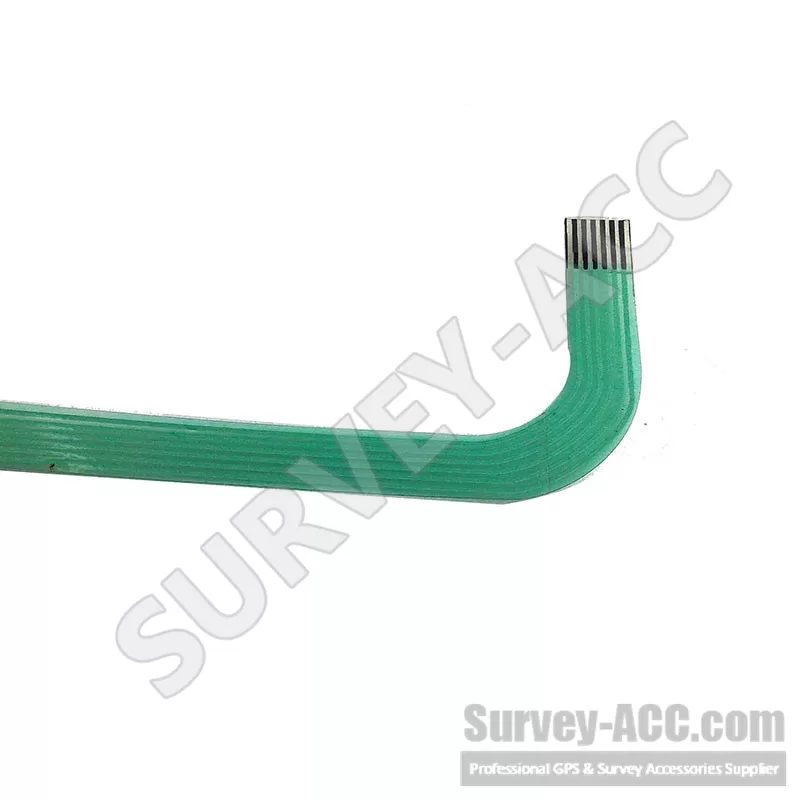

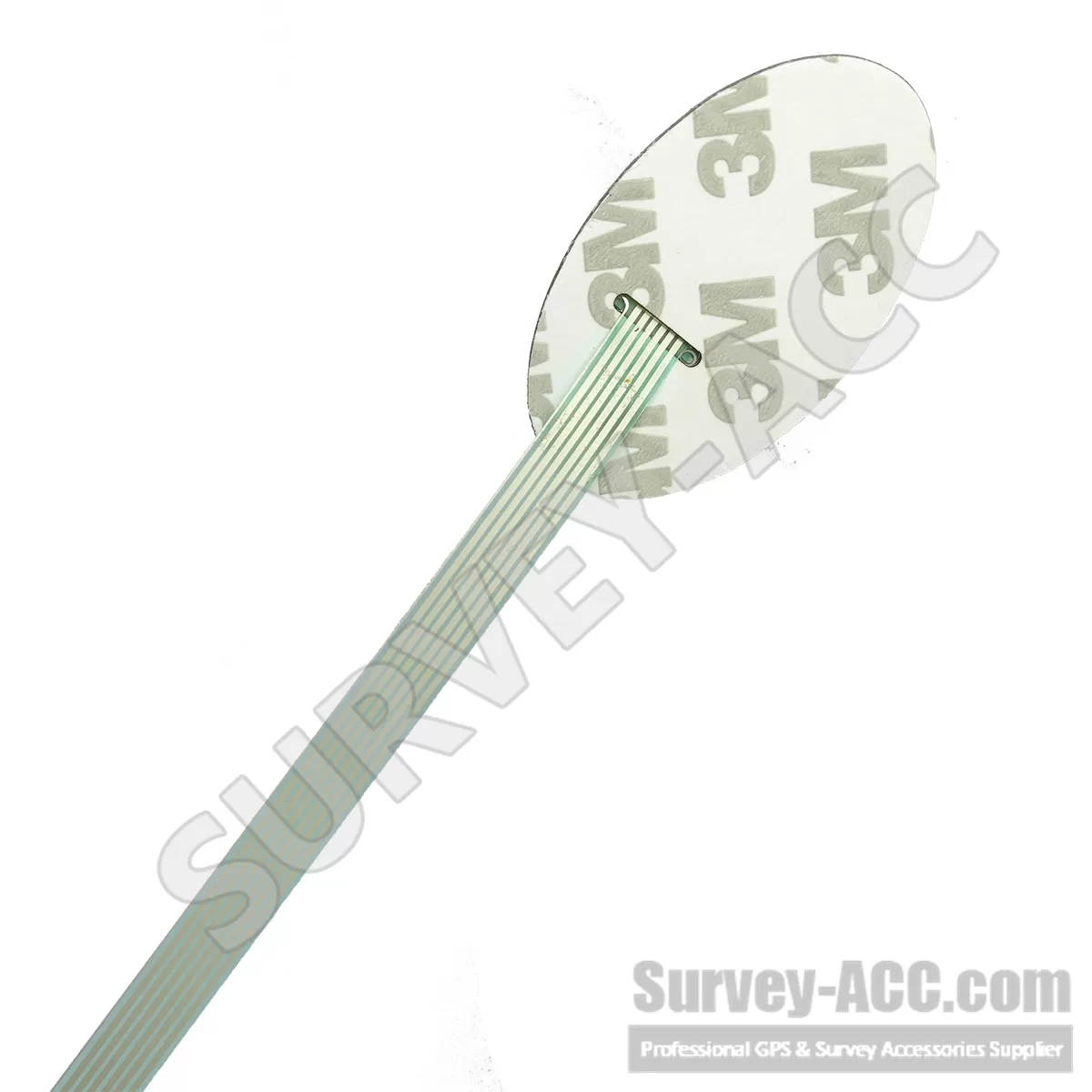

This brand new Trimble R8 Keypad features a durable membrane circuit made with 3M paper. It includes a flex cable and serves as a replacement for the Trimble R8 5800 Receiver Panel or keypad.

Installation Instructions

1. Ensure the keypad area is thoroughly cleaned inside and out.

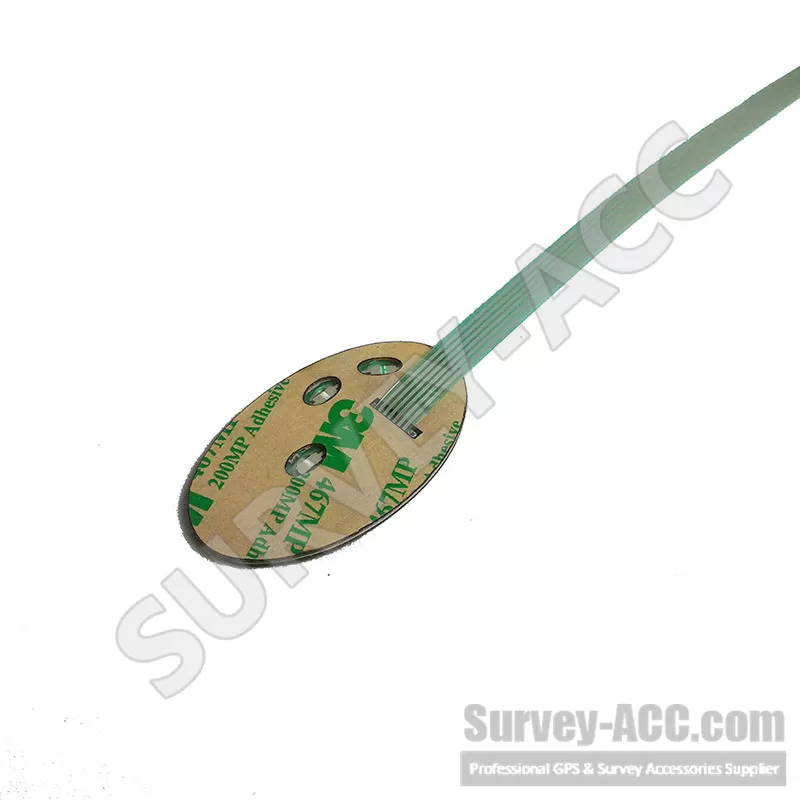

2. Remove the backing from the new keypad and insert the flex cable through the existing hole in the housing, feeding it through fully.
3. Press the keypad along the edges to secure it firmly in place.
4. To ensure a proper seal, apply a small bead of non-flow, non-corrosive RTV GE128 where the flex cable feeds through the housing.

Key Features

The Trimble R8 keypad is an essential component of the Trimble R8 receiver, widely used in the surveying industry. The keypad includes:

• Power Button: Turns the device on and off.
• Menu Button: Accesses various settings and options.
• Arrow Buttons: For navigation.
• Function Keys: Perform specific tasks.
• Enter Key: Confirms selections and inputs.
• Escape Key: Cancels or exits menus and settings.
• Numeric Keys: For entering data and coordinates.
• Clear Key: Deletes inputted data.

The membrane design provides a protective layer against dust, dirt, and moisture, ensuring functionality in harsh environments and durability for daily use.

Compatibility

The Trimble R8 keypad is also compatible with Trimble R4 and R6 receivers. For detailed replacement instructions, users can refer to the Trimble R8 service manual.
